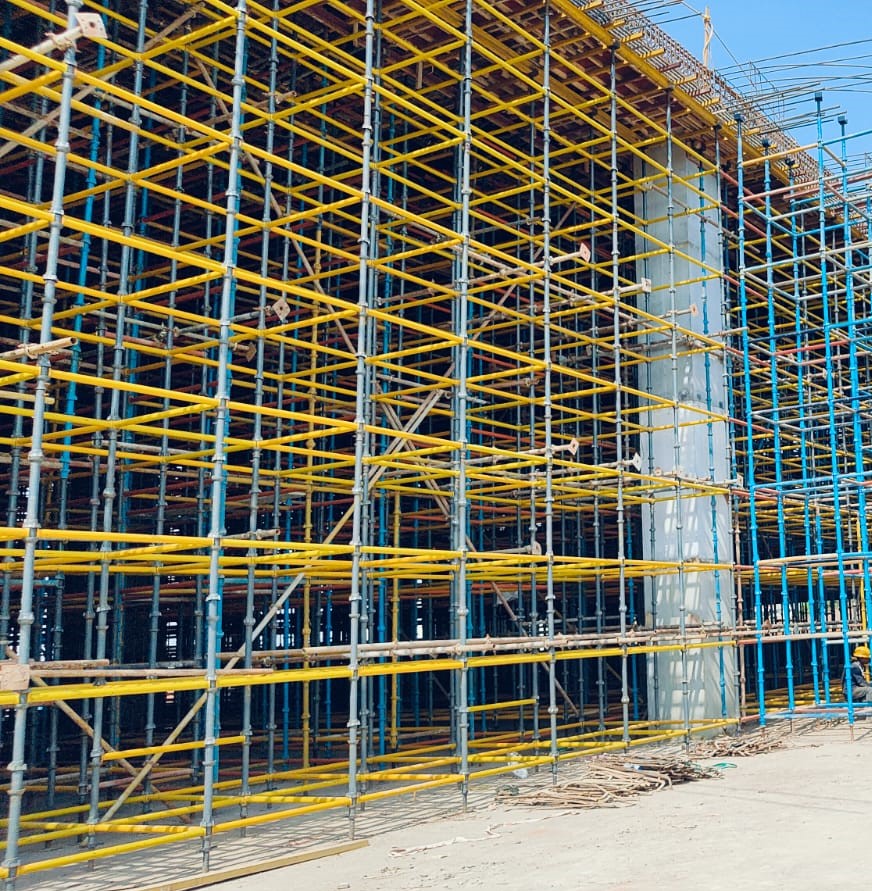

Gleanore’s globally acknowledged scaffold systems are precisely engineered with regard to the safety of the user. Given that cuplock is a form of modular scaffolding, it mostly consists of vertical and horizontal components that users can combine to form temporary structures suitable for various construction jobs. These components are connected via a unique circular node-locking design, providing users with greater flexibility and safety.
Gleanore’s cuplock systems are designed and tested in accordance with BS EN 12810 and BS EN 12811 standards. Cuplock systems are suitable for support applications with 29 kN leg loading capacity until the vertical dimensions between the ledgers reach a maximum of 2m vertical centers. The leg load can be increased to 40 kN when the maximum vertical distance between ledgers is limited to 1.5m, and 55 kN leg load can be accommodated when ledgers are at 1.0m vertical centers. Through our selection of the finest raw materials and our adherence to stringent manufacturing processes, we establish the highest level of manufacturing and safety
|
Unique Code
|
System Components
|
Unit Wgt (KGs.)
|
|---|---|---|
|

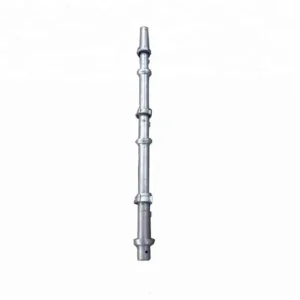

GL-CV30
|
Cuplock Vertical 3.00 Mtr.
|
14.20
|
|
GL-CV25
|
Cuplock Vertical 2.50 Mtr.
|
11.80
|
|
GL-CV20
|
Cuplock Vertical 2.00 Mtr.
|
9.60
|
|
GL-CV15
|
Cuplock Vertical 1.50 Mtr.
|
7.10
|
|
GL-CV10
|
Cuplock Vertical 1.00 Mtr.
|
4.70
|
|
GL-CV05
|
Cuplock Vertical 0.50 Mtr.
|
2.35
|
|
STEEL GRADE : YST 210 GRADE - 1161
|
THICKNESS : 3.20 MM
|
|
|
Unique Code
|
System Components
|
Unit Wgt (KGs.)
|
|---|---|---|
|
GL-RV30
|
Cuplock Horizontal 2.50 Mtr.
|
8.30
|
|
GL-RV25
|
Cuplock Horizontal 2.00 Mtr.
|
7.00
|
|
GL-RV20
|
Cuplock Horizontal 1.80 Mtr.
|
6.20
|
|
GL-RV15
|
Cuplock Horizontal 1.50 Mtr.
|
5.40
|
|
GL-RV10
|
Cuplock Horizontal 1.00 Mtr.
|
4.40
|
|
GL-RV05
|
Cuplock Horizontal 0.50 Mtr.
|
2.20
|
|
STEEL GRADE : YST 210 GRADE - 1161
|
THICKNESS : 3.00 MM
|
|
|
Unique Code
|
System Components
|
Unit Wgt (KGs.)
|
|---|---|---|
|

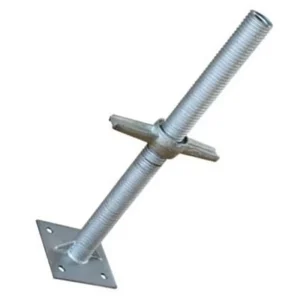

GL-BJ65
|
Solid Jacks 36 X 650 MM
|
6.65
|
|
GL-BJ60
|
Solid Jacks 36 X 600 MM
|
6.25
|
|
GL-BJ55
|
Solid Jacks 36 X 550 MM
|
5.80
|
|
GL-BJ50
|
Solid Jacks 36 X 500 MM
|
5.38
|
|
GL-BJ45
|
Solid Jacks 36 X 450 MM
|
5.10
|
|
GL-BJS65
|
Solid Jacks 32 X 650 MM
|
5.55
|
|
GL-BJS60
|
Solid Jacks 32 X 600 MM
|
5.25
|
|
GL-BJS55
|
Solid Jacks 32 X 550 MM
|
4.95
|
|
GL-BJS50
|
Solid Jacks 32 X 500 MM
|
4.64
|
|
GL-BJS45
|
Solid Jacks 32 X 450 MM
|
4.26
|
|
STEEL GRADE : IS 2062
|
NON - CORROSIVE
|
|
|
Unique Code
|
System Components
|
Unit Wgt (KGs.)
|
|---|---|---|
|
GL-SH65
|
Solid Jacks 36 X 650 MM
|
6.75
|
|
GL-SH60
|
Solid Jacks 36 X 600 MM
|
6.35
|
|
GL-SH55
|
Solid Jacks 36 X 550 MM
|
5.90
|
|
GL-SH50
|
Solid Jacks 36 X 500 MM
|
5.48
|
|
GL-SH45
|
Solid Jacks 36 X 450 MM
|
5.20
|
|
GL-UJ65
|
Solid Jacks 32 X 650 MM
|
5.65
|
|
GL-UJ60
|
Solid Jacks 32 X 600 MM
|
5.35
|
|
GL-UJ55
|
Solid Jacks 32 X 550 MM
|
5.05
|
|
GL-UJ50
|
Solid Jacks 32 X 500 MM
|
4.74
|
|
GL-UJ45
|
Solid Jacks 32 X 450 MM
|
4.36
|
|
STEEL GRADE : IS 2062
|
NON - CORROSIVE
|
|
